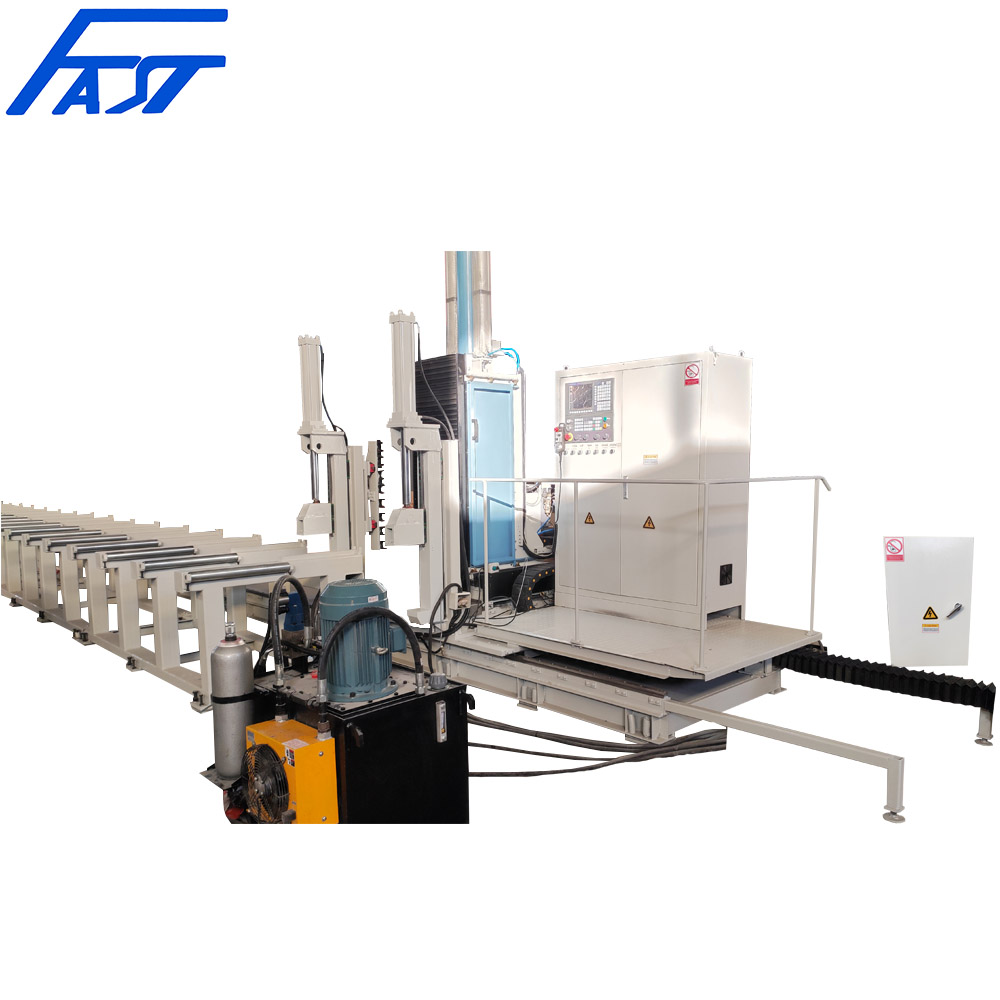

Horizontal Single-Shaft CNC Drilling Machine for H-Beam, U-Channel, Angle, Around Pipe, Square Pipe in Steel Structure

APPLICATION

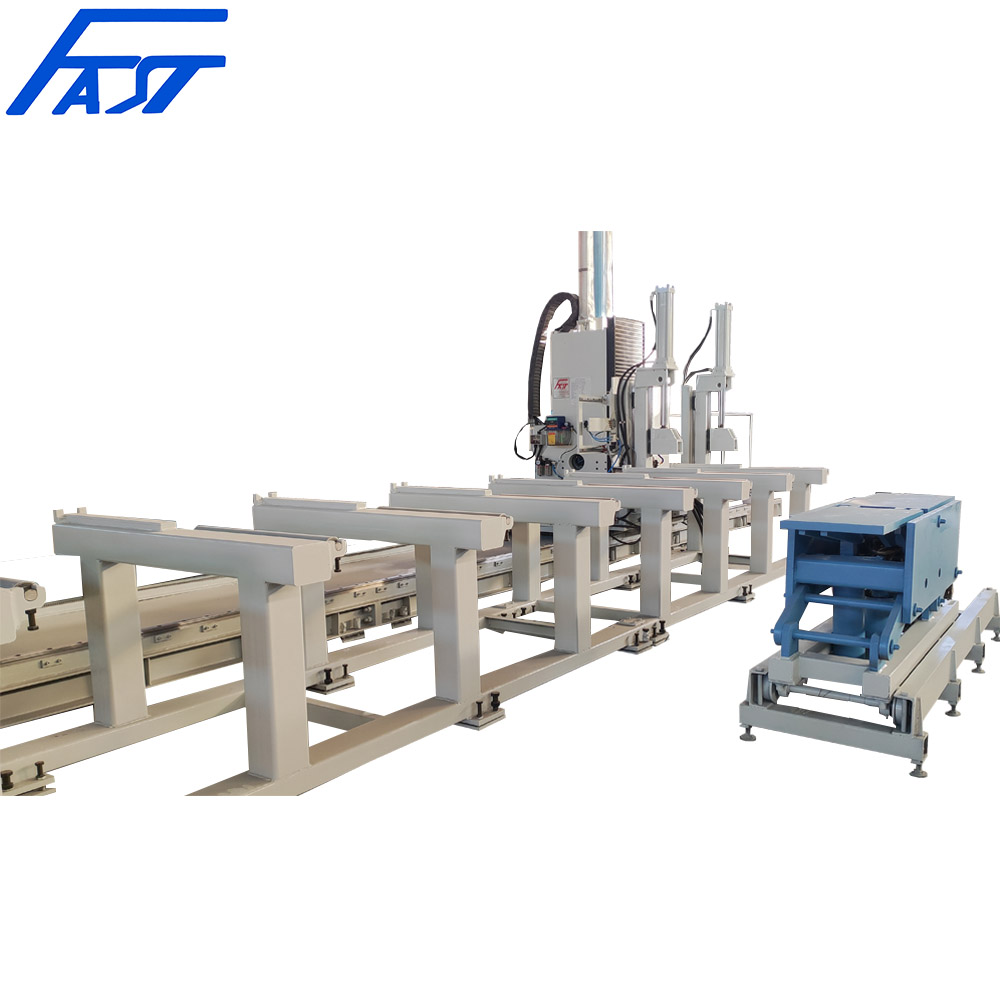

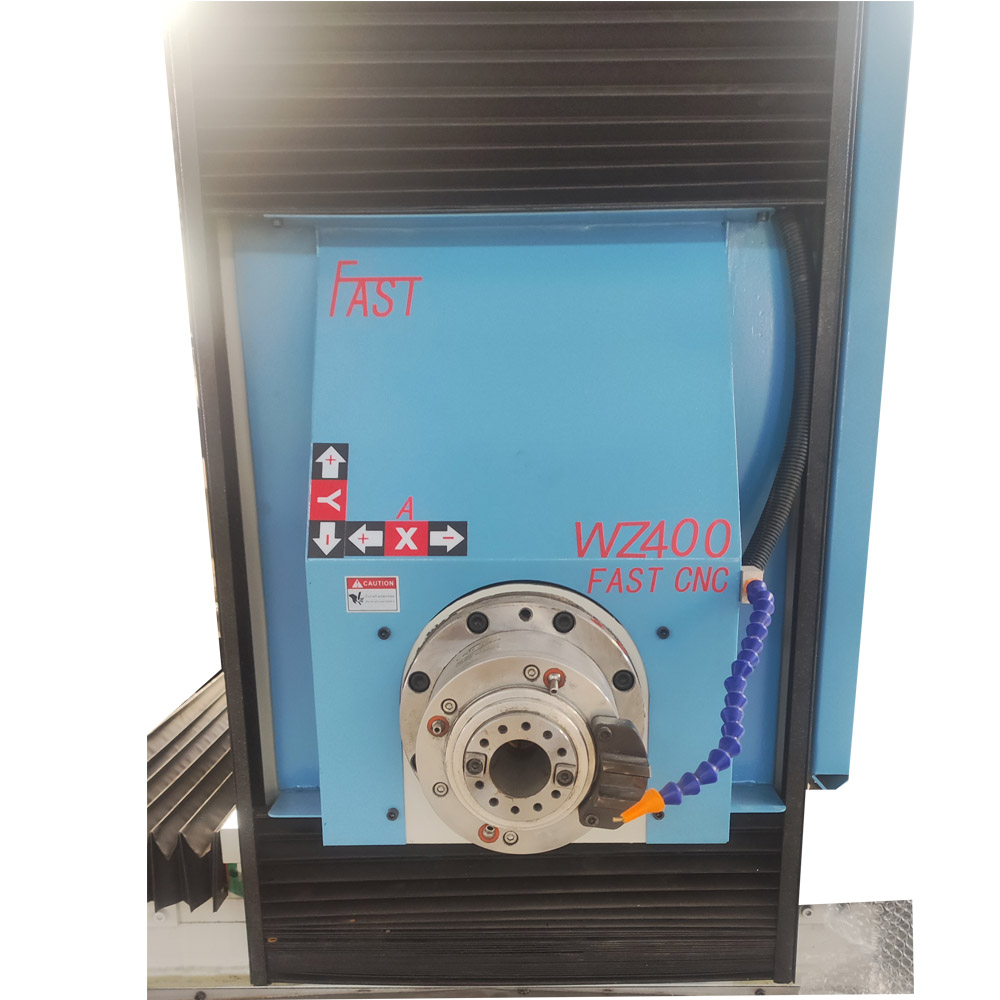

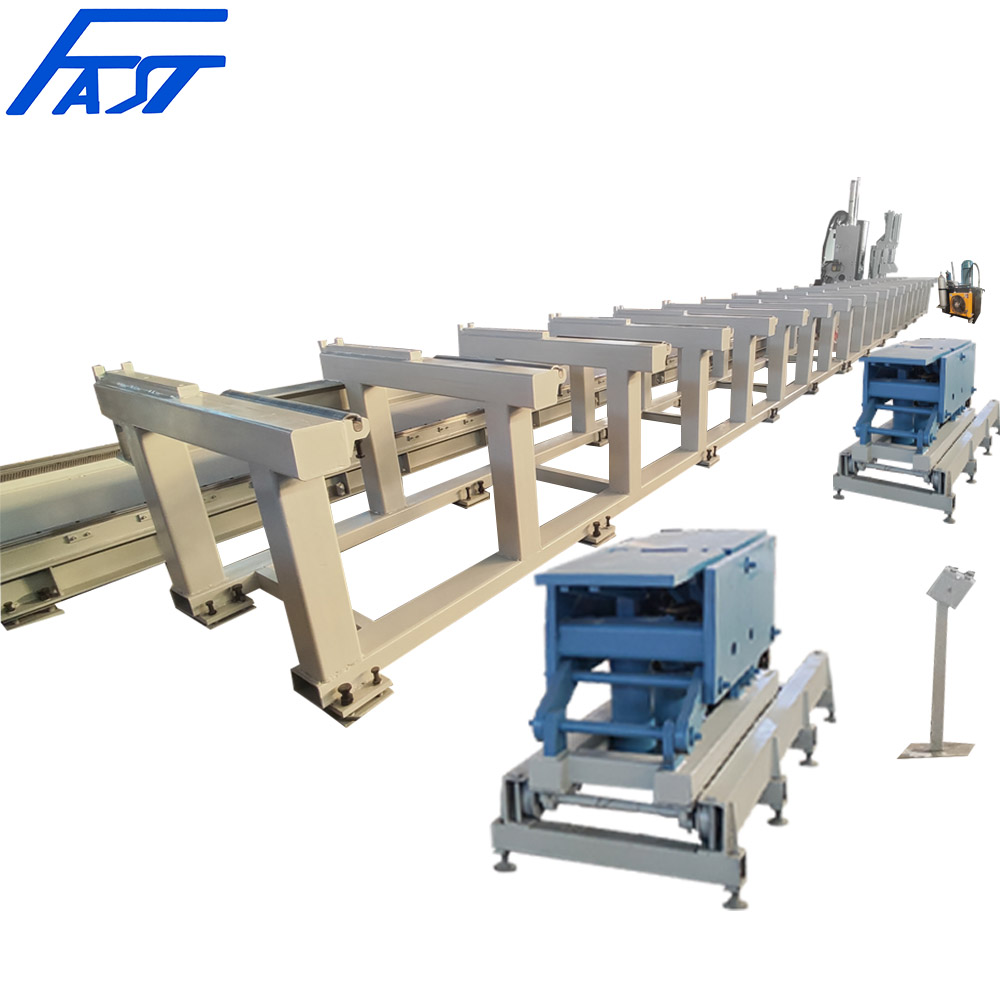

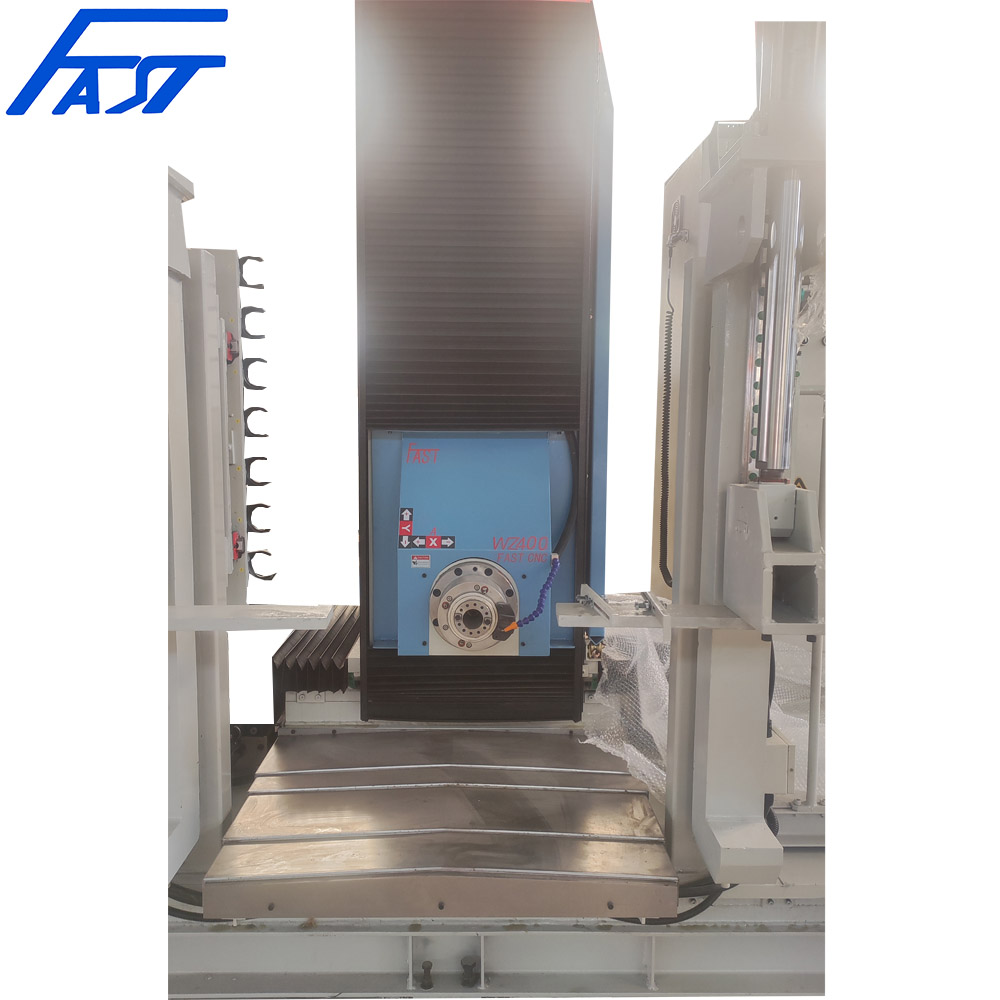

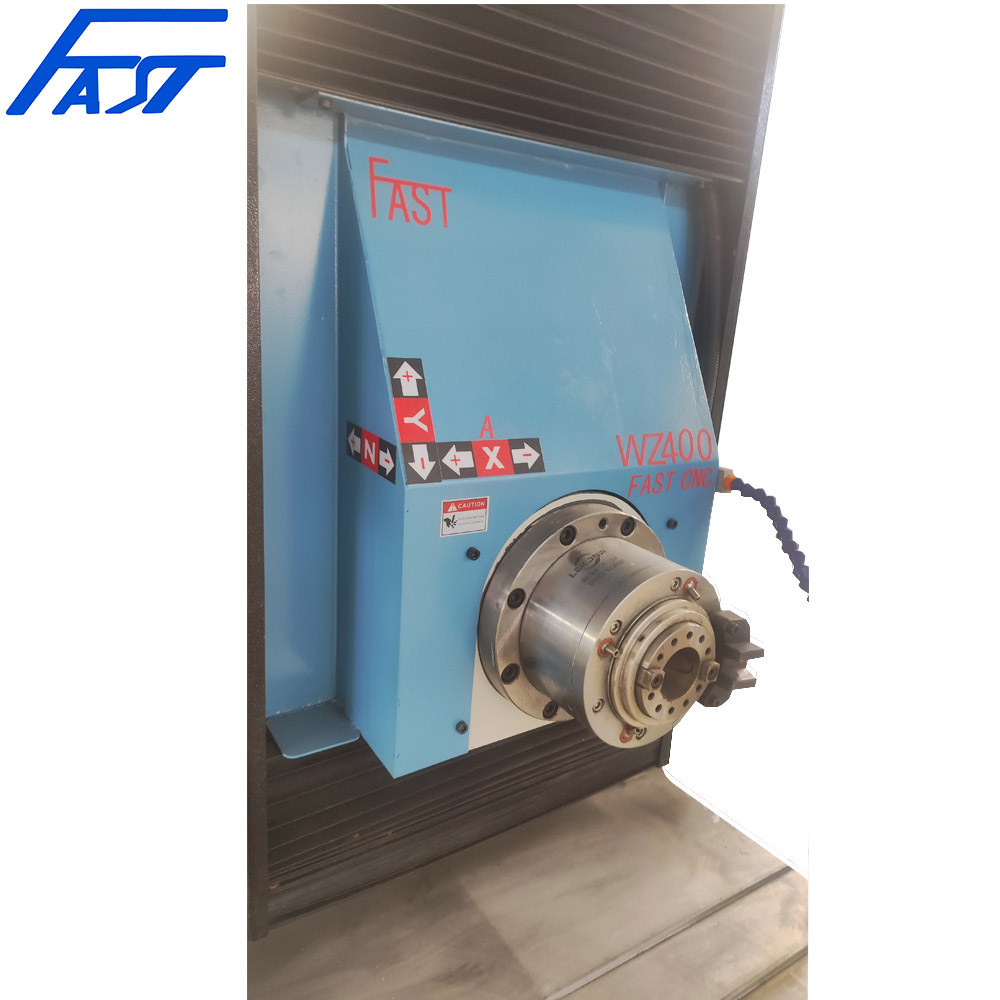

• This machine is mainly used for single-sided drilling of H-shaped steel (L, T-shaped steel), channel steel and square pipe, and is widely used in steel structure buildings, bridges, three-dimensional garages and other industries. The 4+1-axis CNC single-sided drilling machine for profiled steel adopts a structure in which the host moves and the workpiece is fixed.Servo motors realize the positioning of the spindle on the side of the profiled steel, that is, the longitudinal direction and the vertical direction, and the servo feeding of one spindle. The spindle is driven by a servo spindle motor via a pulley and a belt. This machine tool has high hole positioning accuracy and high drilling efficiency, and is an indispensable equipment in the steel structure manufacturing industry.

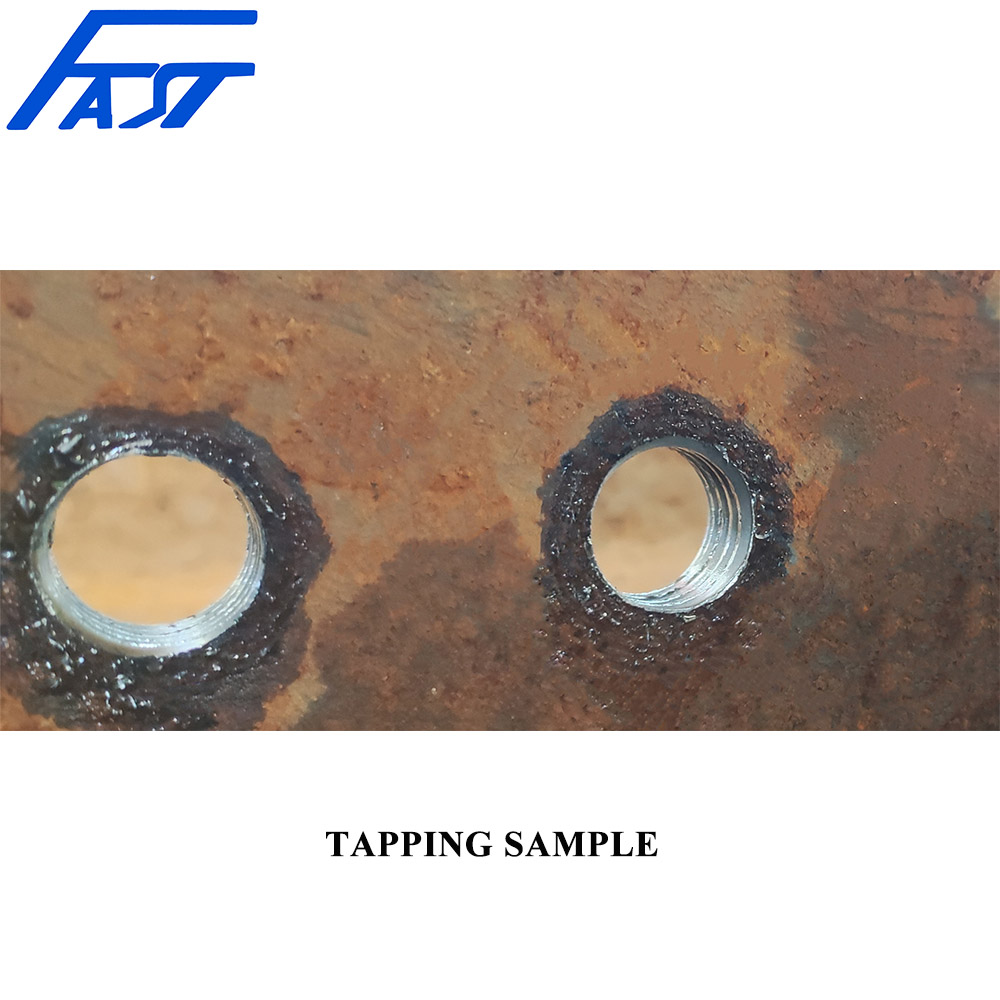

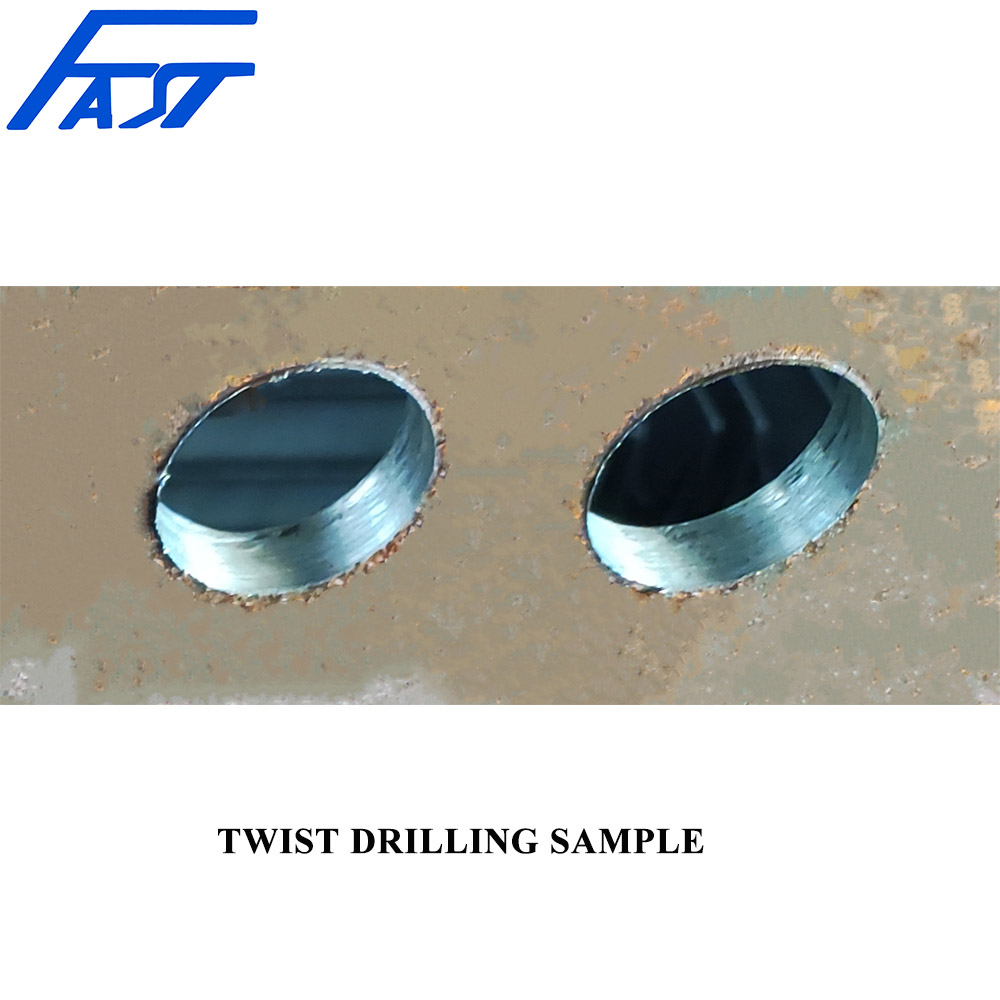

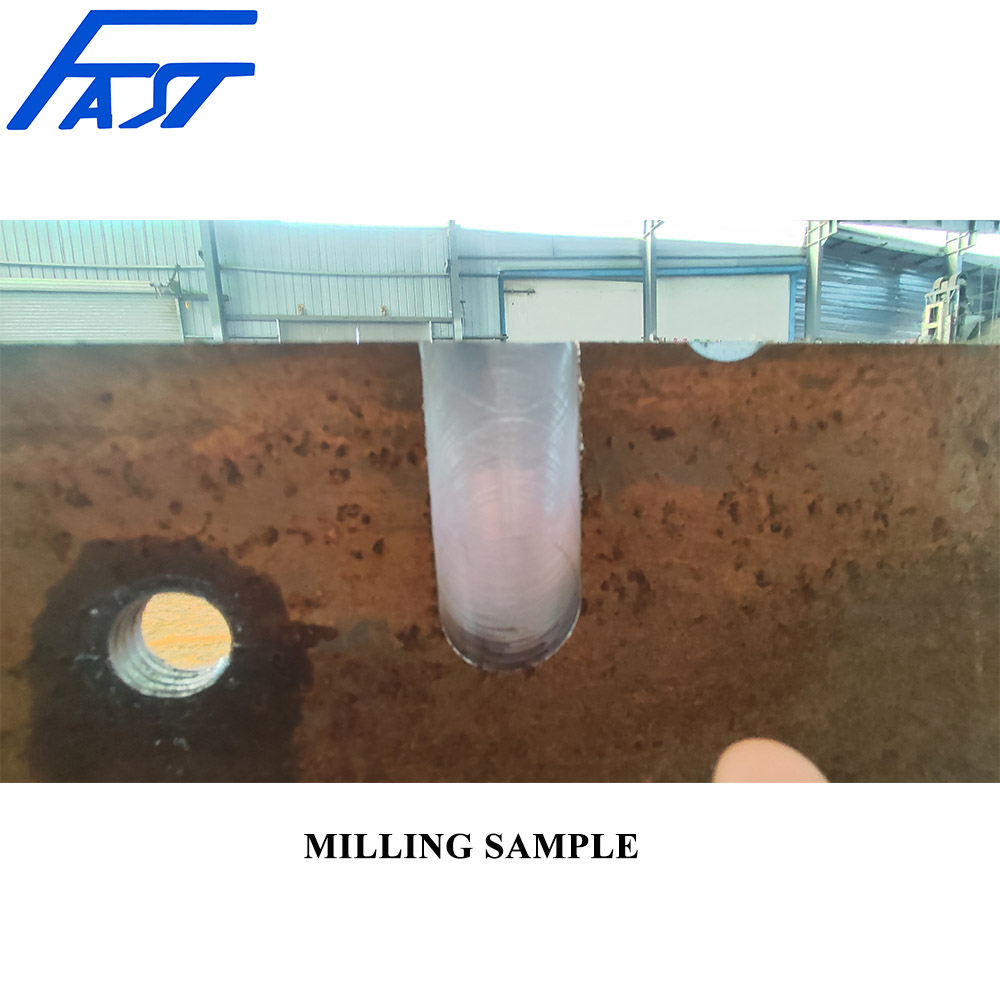

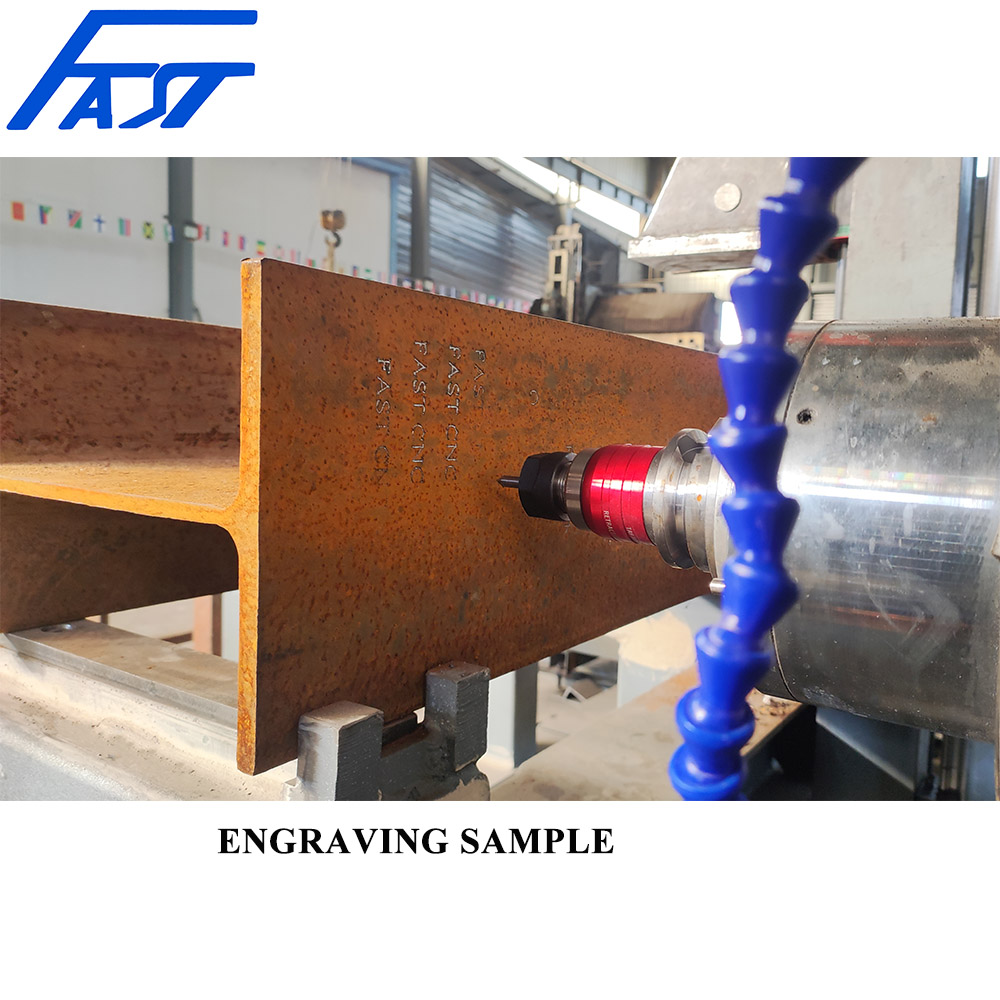

• Machine tool functions: drilling, milling, tapping, scraping.

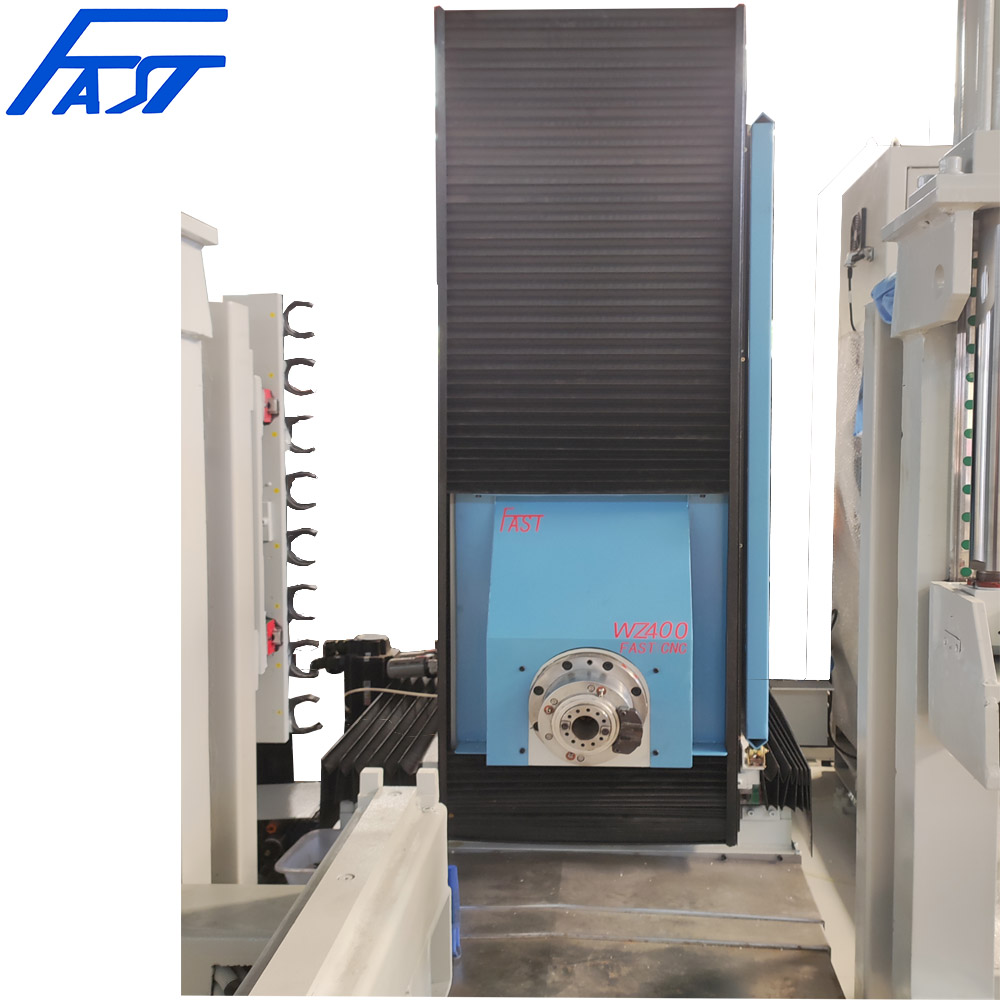

• The machine can be equipped with a tool magazine.

FEATURES

Craft:
Put the workpiece on the worktable → the workpiece close to the reference side → check whether the tool in the tool magazine meets the processing requirements → tool setting (only when the tool length changes) → start the program to automatically drill holes→ Finished drilling → Take workpiece away from the worktable.

TECHNICAL DATA

FAQ

· Are you a Manufacturer or a Trading company？

Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.

Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc

· Do you have stock product ready to delivery？

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed，when to delivery？

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services？

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality？

Each machine must be carried out quality examination and test when shipping and delivery goods.
