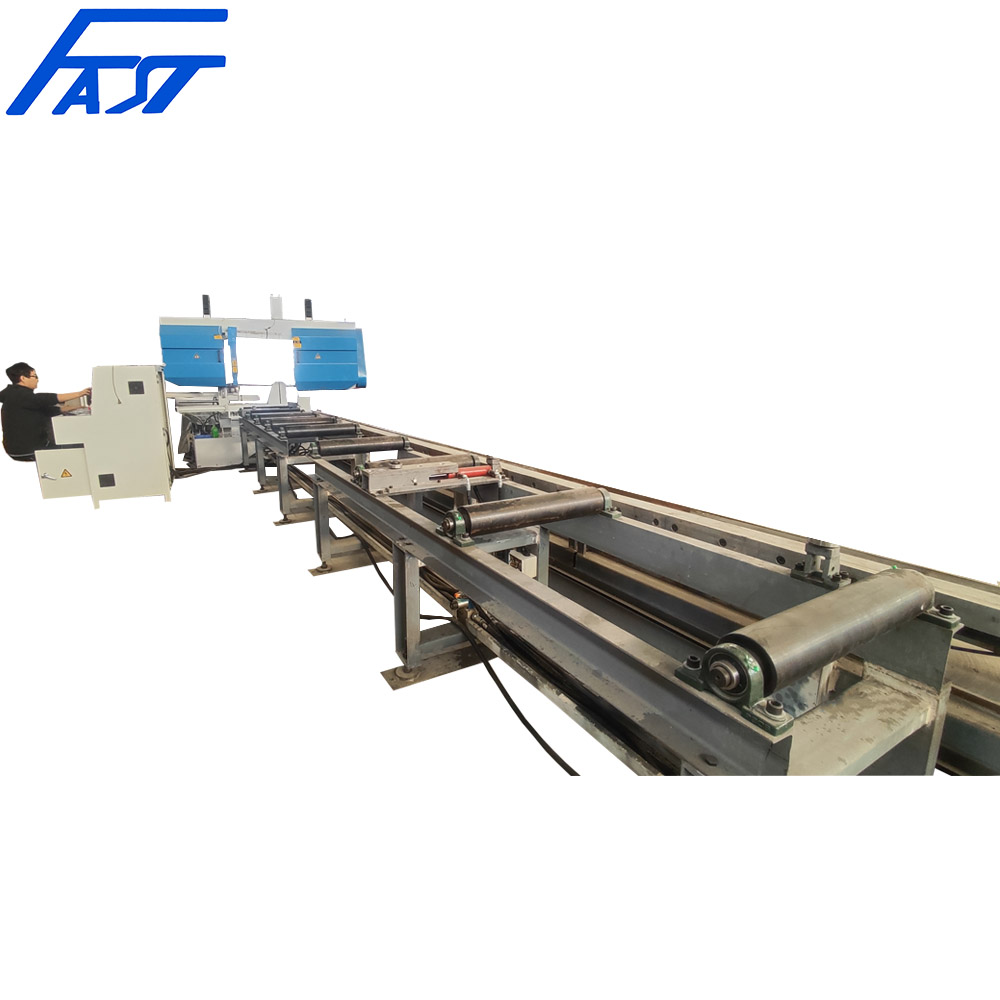

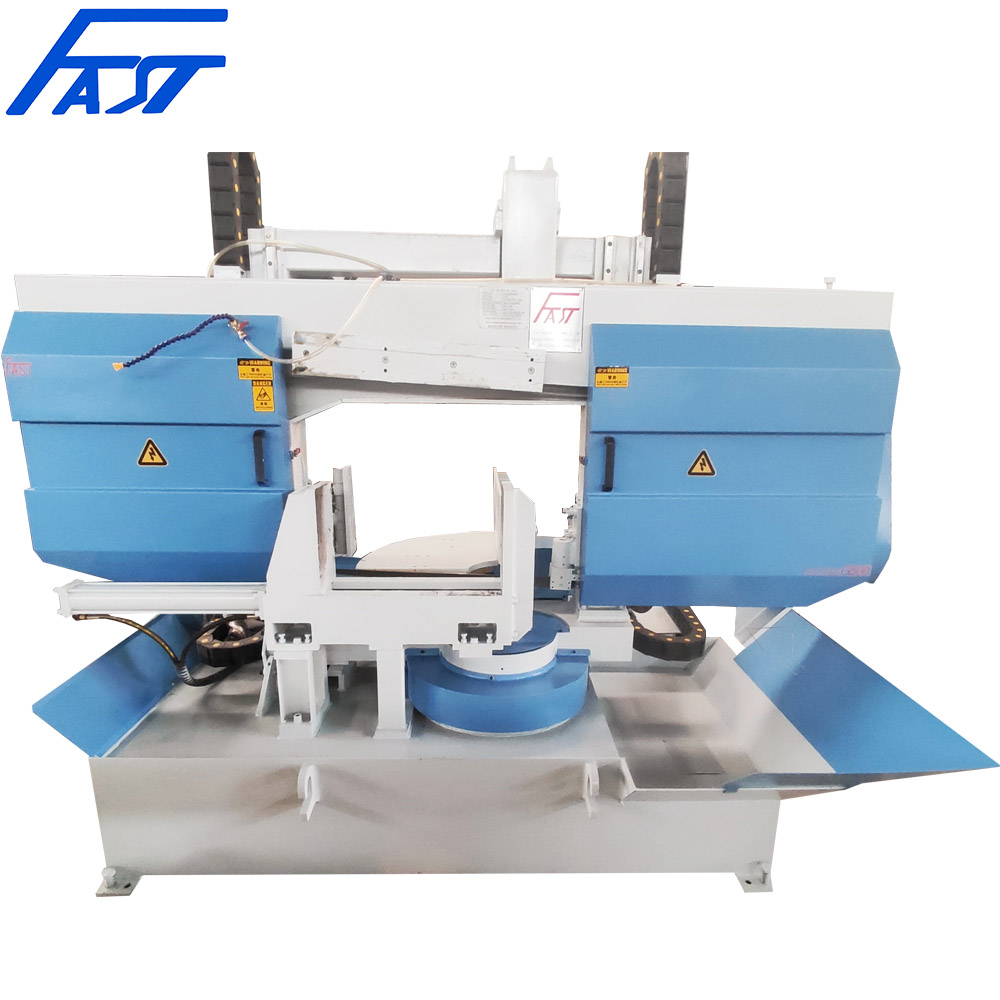

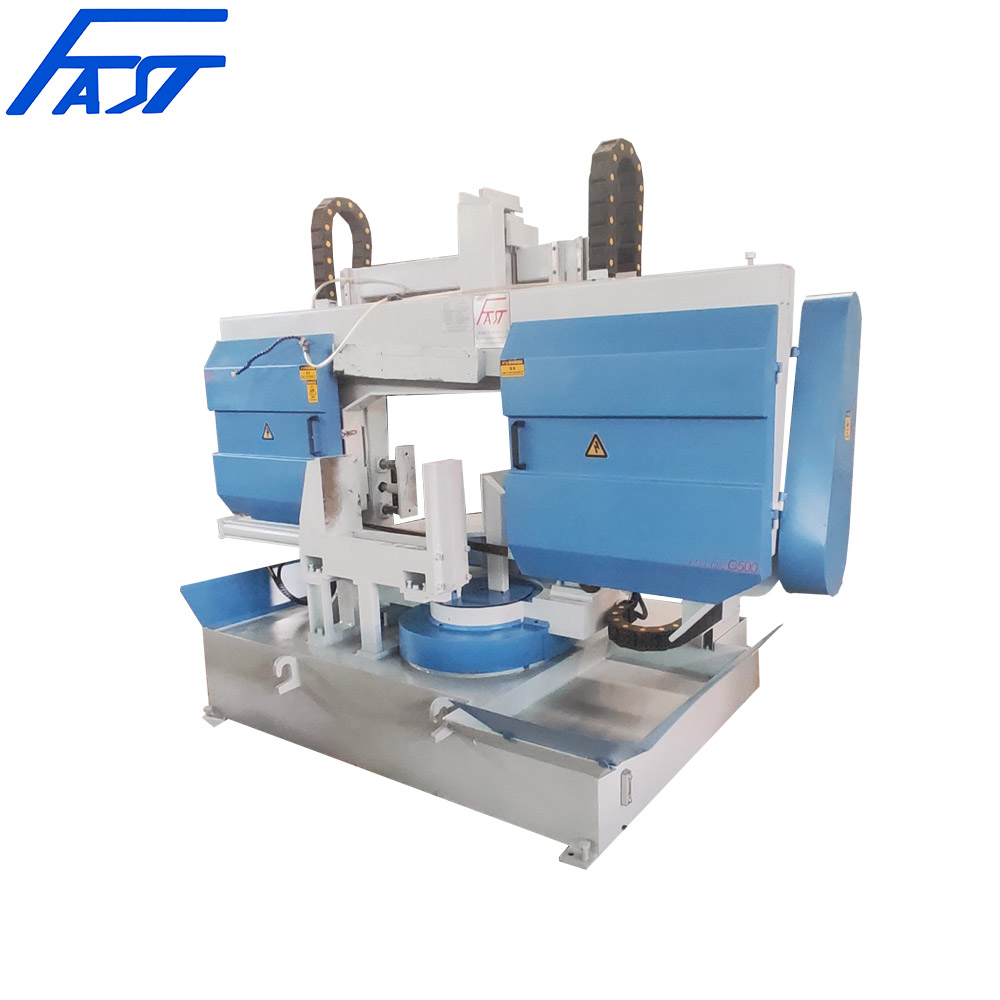

H-Beam Drilling Band Saw Cutting Machine SAW500 With Rotary 0°~45° With Loading And Off Loading Line
APPLICATION
This machine is used for sawing H-beam, steel bar, round steel and other profiles.Narrow saw cutting, high cutting precision, convenient operation and high production efficiency.

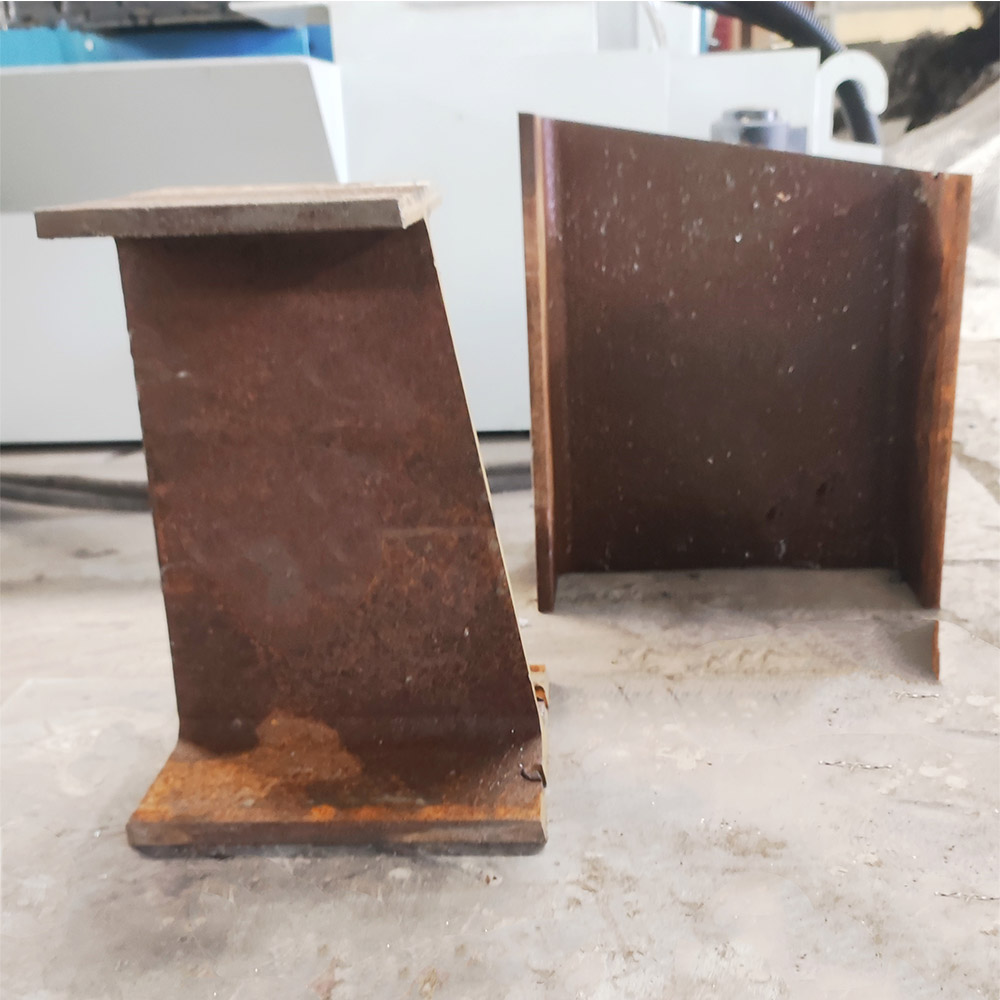

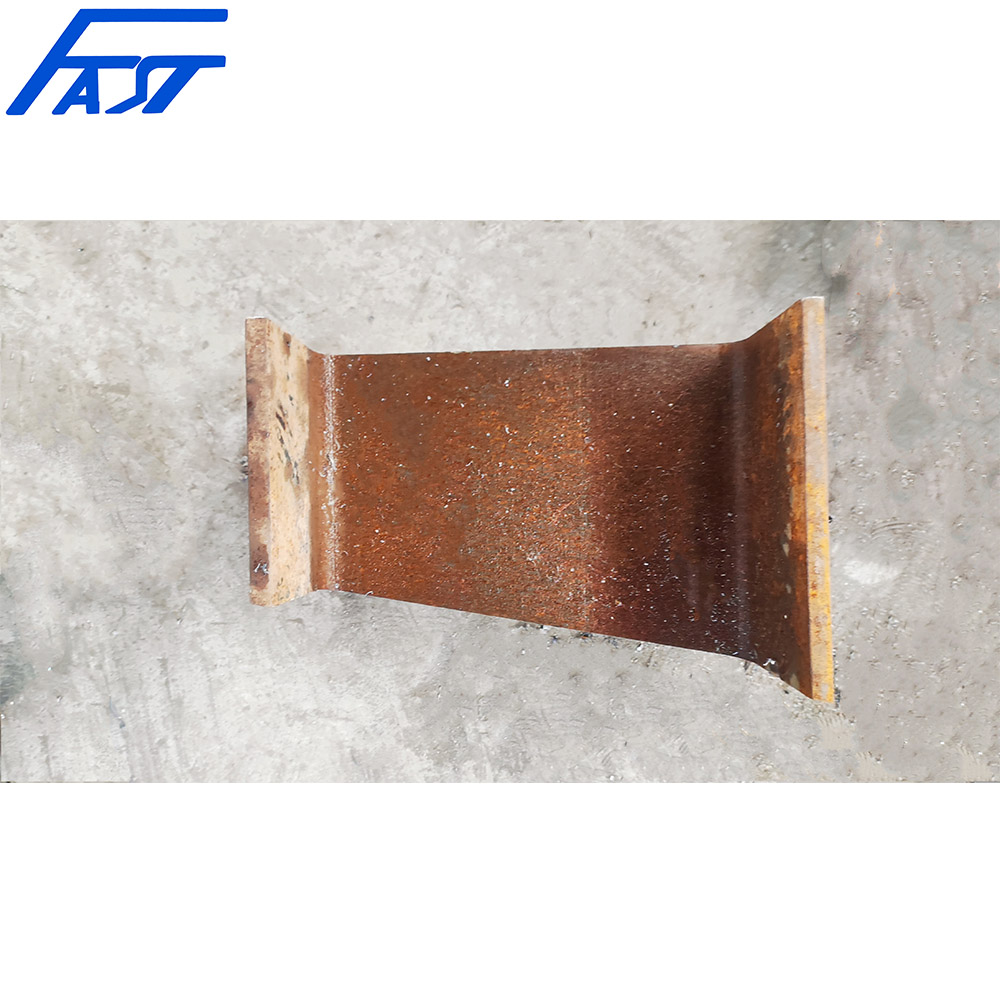

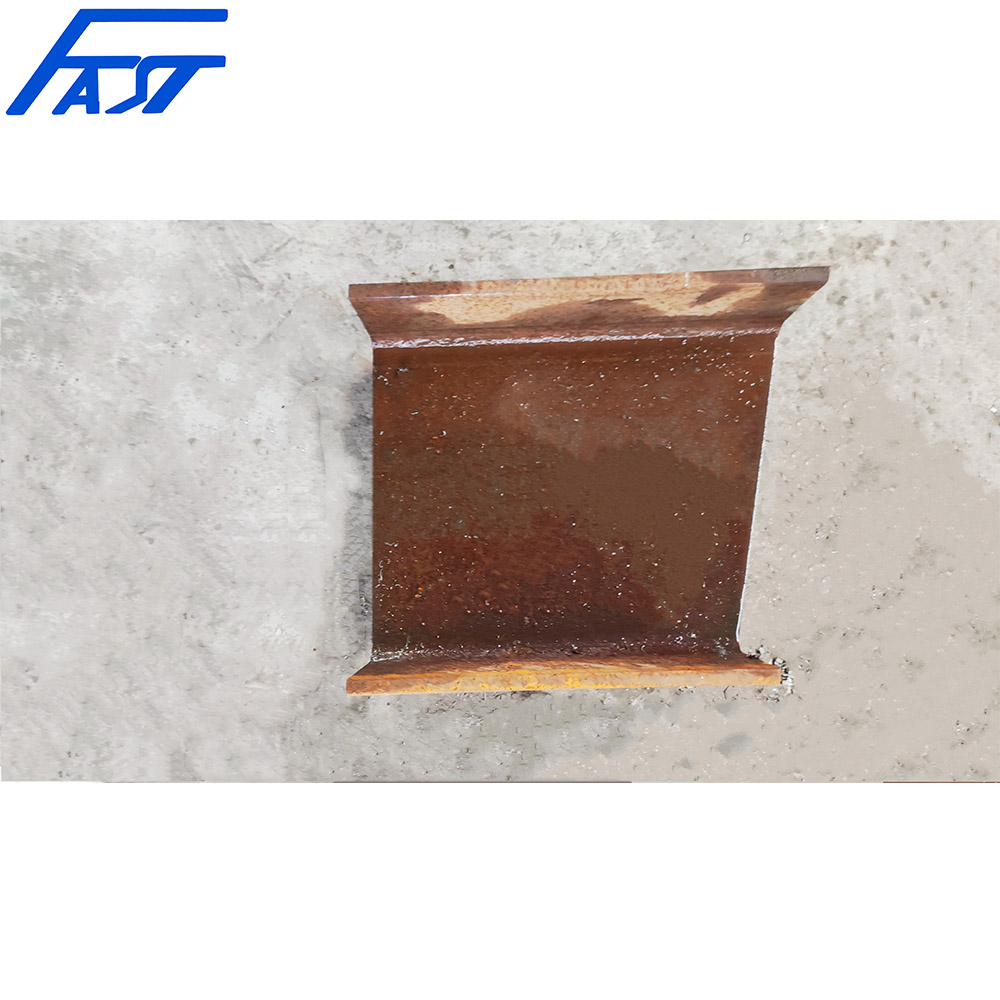

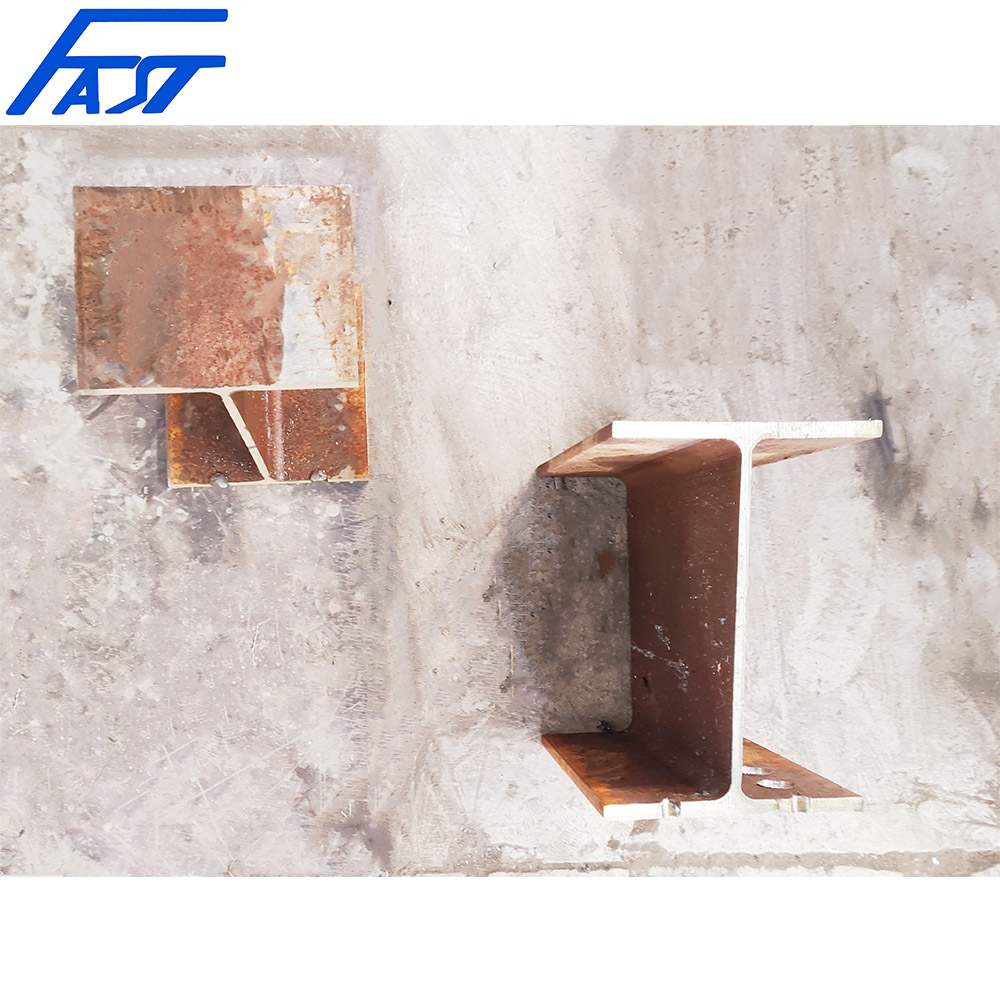

This machine is used to cut all kinds of steels. The saw frame can rotate on the platform, which can meet the cutting of all kinds of steel end faces at a certain degree. The degree can be adjusted between 0-45 degrees. It can also cut all kinds of black or non-ferrous metal materials after selecting appropriate processing parameters.
FEATURES
1. This machine can cut all kinds of ferrous metals and non-ferrous metals.
2. The Saw adopts a double column structure to ensure guidance accuracy and stable and reliable sawing.
3. Hydraulic clamping, convenient for clamping materials, suitable for cutting mold materials.
4. The transmission mechanism of the sawing unit is precisely balanced and corrected to reduce vibration and ensure that the saw belt is not easy to break and pull teeth.
5. Lifting cylinders, powerful and stable lifting.
6. The steel wire wheel and the water flow clean chips at the same time, and the saw band has a longer life!CNC TROLLEY FEEDING SYSTEM
1.Usage
The trolley feeding system is used for the feeding of the CNC section steel, H beam drilling machine. It is mainly used for the transportation of workpieces into the CNC section steel H beam drilling machine processing process.
The workpiece can be H-beam, channel and box beam, etc.
2 Features
1) The trolley feeding system has the functions of automatic stop and alarm when it is blocked,which improves the reliability and safety of the workpiece conveying process.
2) The trolley feeding system adopts rack and pinion transmission mode, which has a simple structure and is easy to install. The feeding length can be determined according to user requirements.
3) Through the high-precision deceleration transmission, the drive motor can easily transport the heavier workpiece to the CNC section steel 3D drilling machine for accurate positioning, and greatly reduce the movement of the workpiece along the conveying direction during the drilling process, improving the machining accuracy.
4) The height of the clamping arm of the trolley feeding system can be adjusted according to the profiles of different specifications, which meets the processing requirements of workpieces of different specifications.
5) The trolley feeding system adopts the method of loosening the clamping device during feeding, and clamping the workpiece when drilling to ensure accurate positioning of the workpiece.
6) The trolley feeding system has the function of automatically measuring the length of the workpiece.COMPOSITION

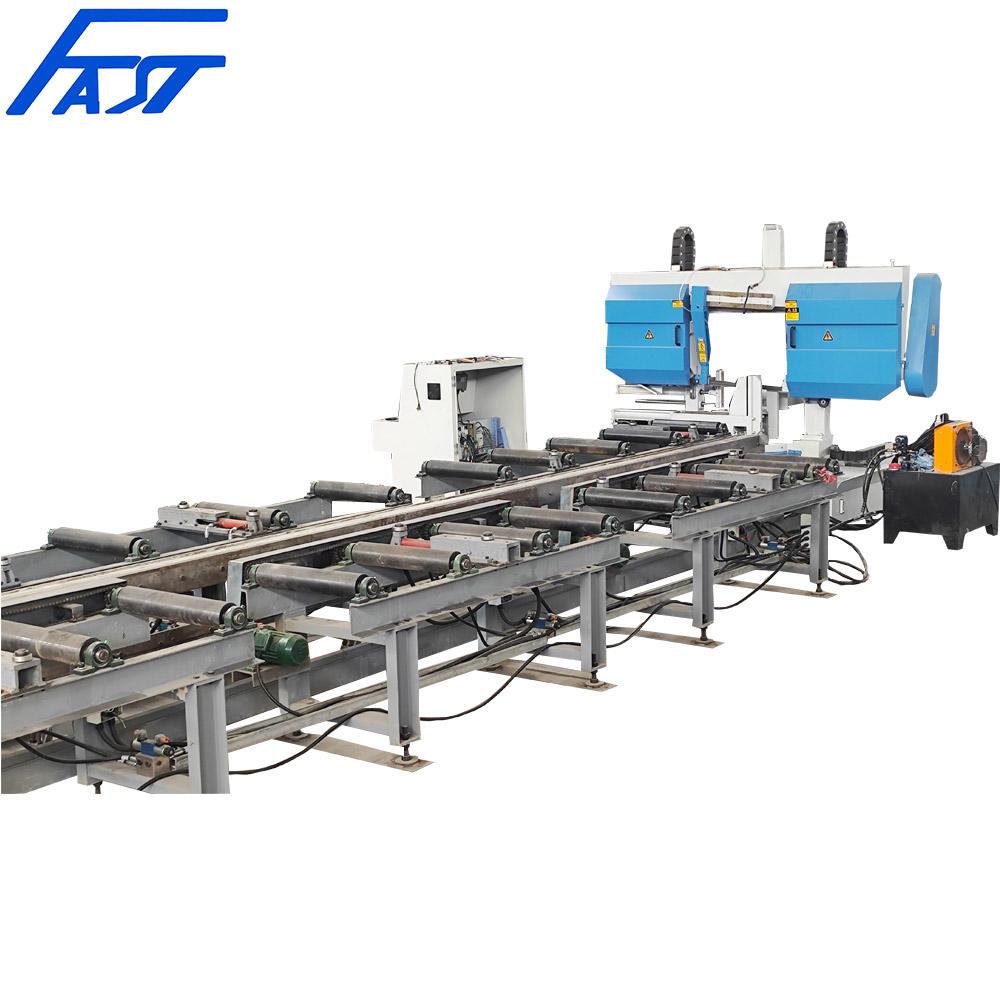

Workpiece Lifting Loading Trolley Horizontal Storage Rack CNC Feeding Trolley CNC Trolley Running Conveyor Loading Roller Conveyor Sawing Unit Offloading Roller Conveyor Hydraulic Power Station Electrical Control System
TECHNICAL DATAMODEL
G500
Maximum sawing range
0°: 500 , 550W×500H
5°: 500 , 500W×500H
45°: 350 , 350W×500H
Band saw blade cutting line speed
40/60/80m/min
Feed speed adjustment method
Hydraulic stepless speed regulation
Clamping method
Vise hydraulic clamping
Bandsaw blade specifications
1.3×41×5550mm
Band saw blade tensioning method
Hydraulic tension
Angle rotation method
Hydraulic, magnetic scale measurement
Locking method
Hydraulic
Main motor power
5.5Kw
Hydraulic motor power
1.5Kw
Cooling pump motor power
0.09Kw

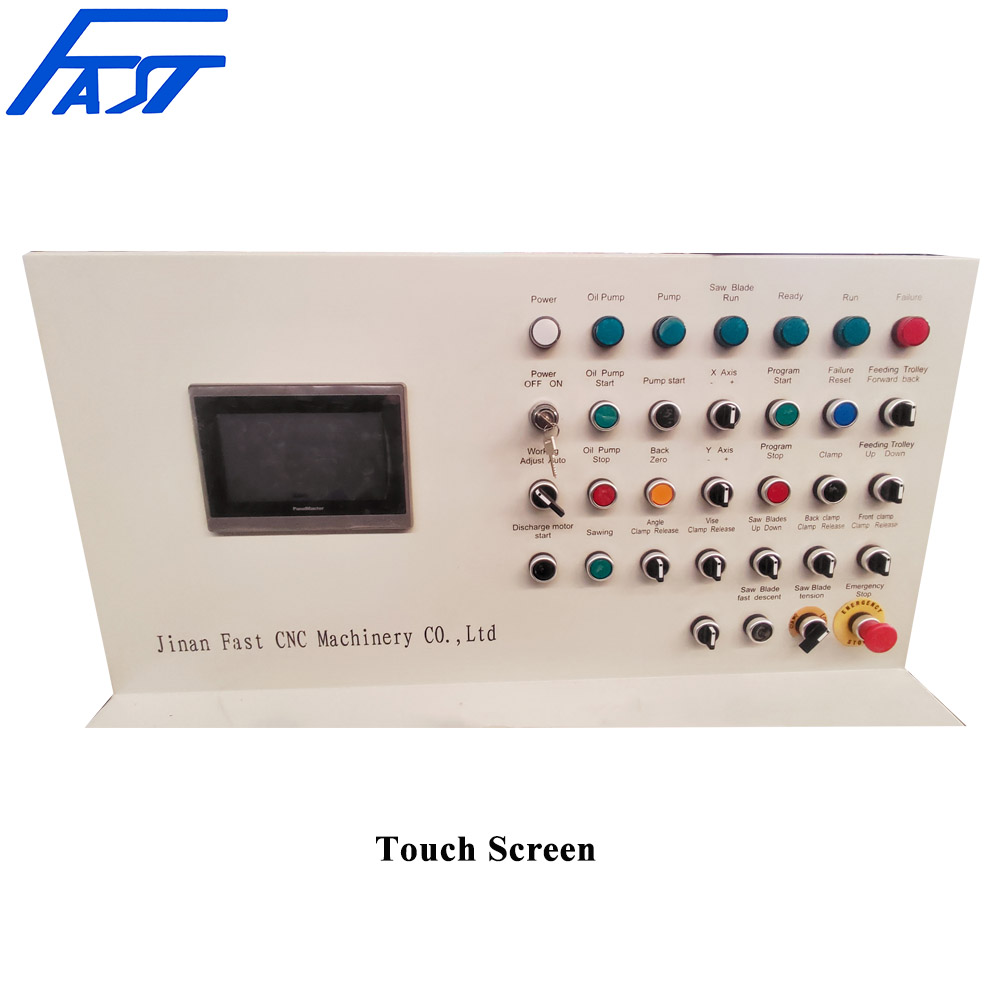

Control method
PLC+Touch screen
Hydraulic tank capacity
60L
Cooling box capacity
100L
Saw size
2400*2000*2050mm
Saw weight
2400kg
Cooling system
Automatic circulating coolant
power supply
3PH/380V/50HZ
Sawhorse lift
Hydraulic
Clean waste chips
steel wire brush
Saw band inspection
Proximity switch
Following Spare part
0.5 meter long roller stand
Following Spare part
A saw blade
Following Spare part
Toolkit/Toolbox
Following Spare part
Operation, Maintenance, Electrical Manuals
