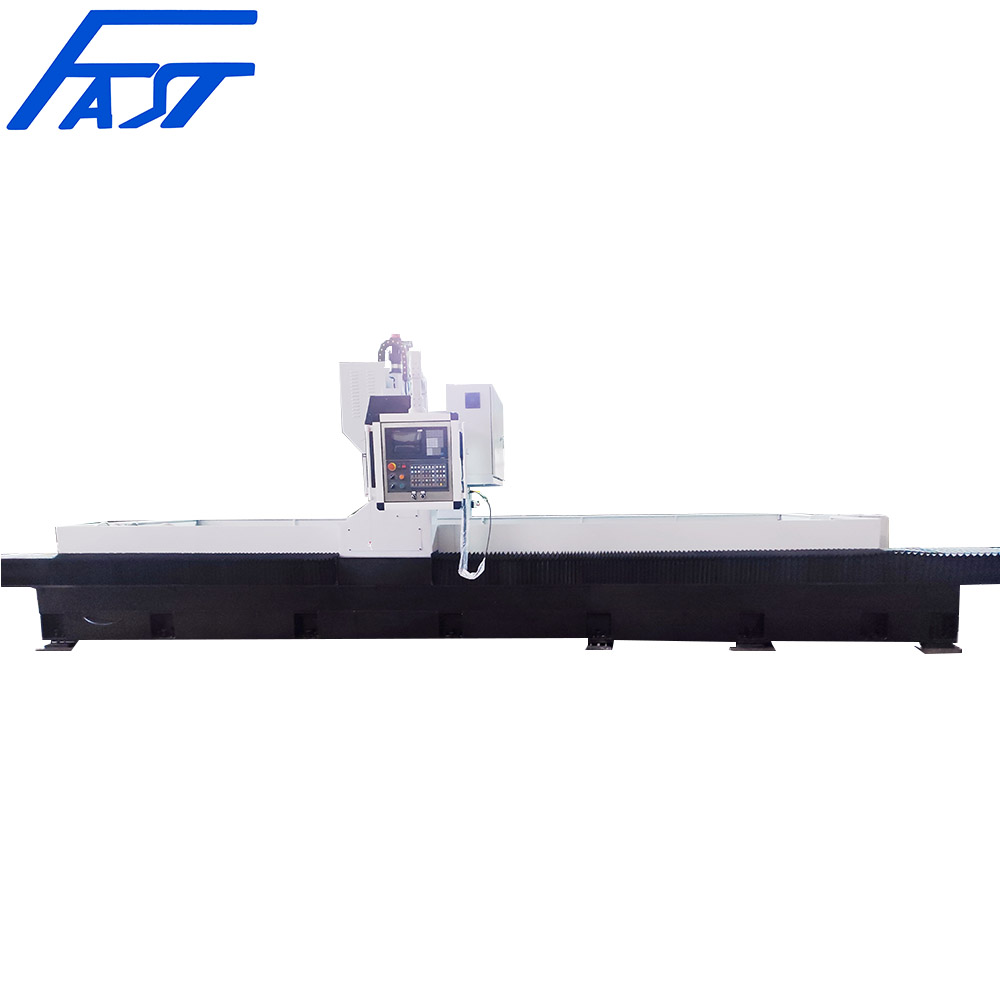

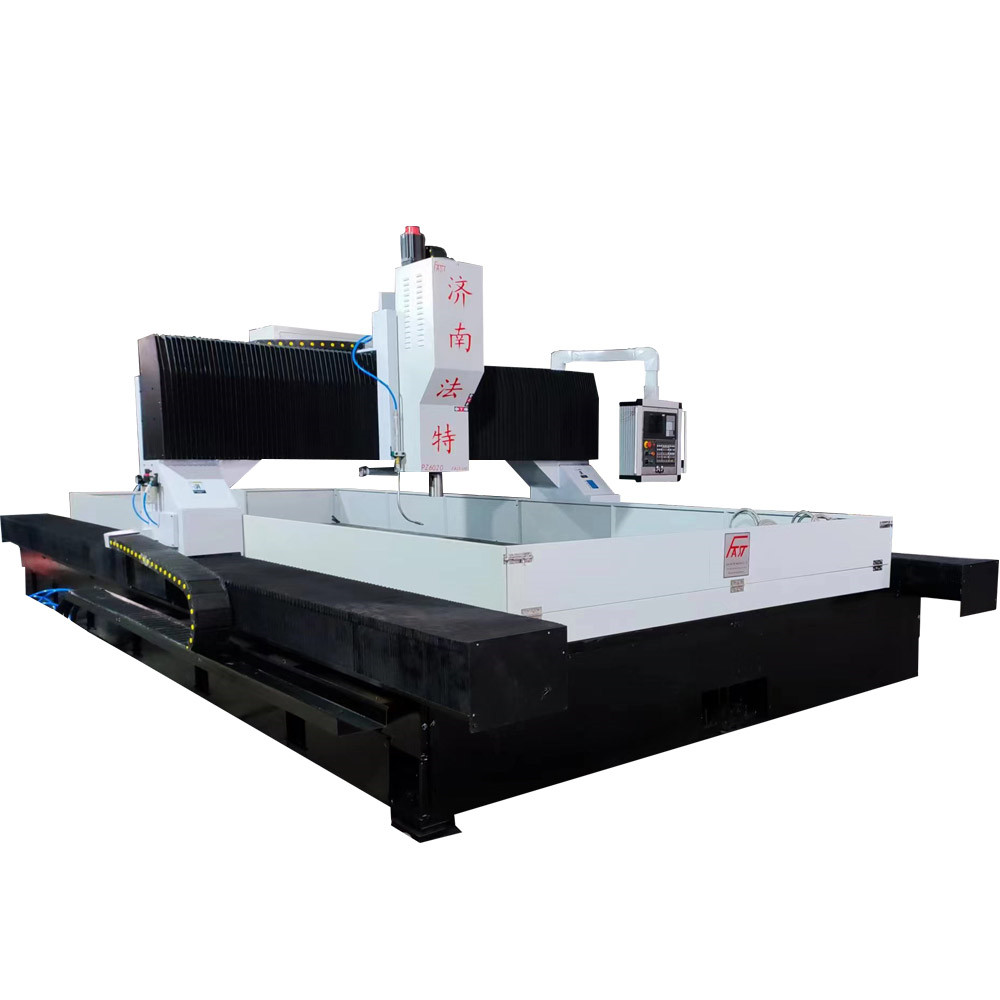

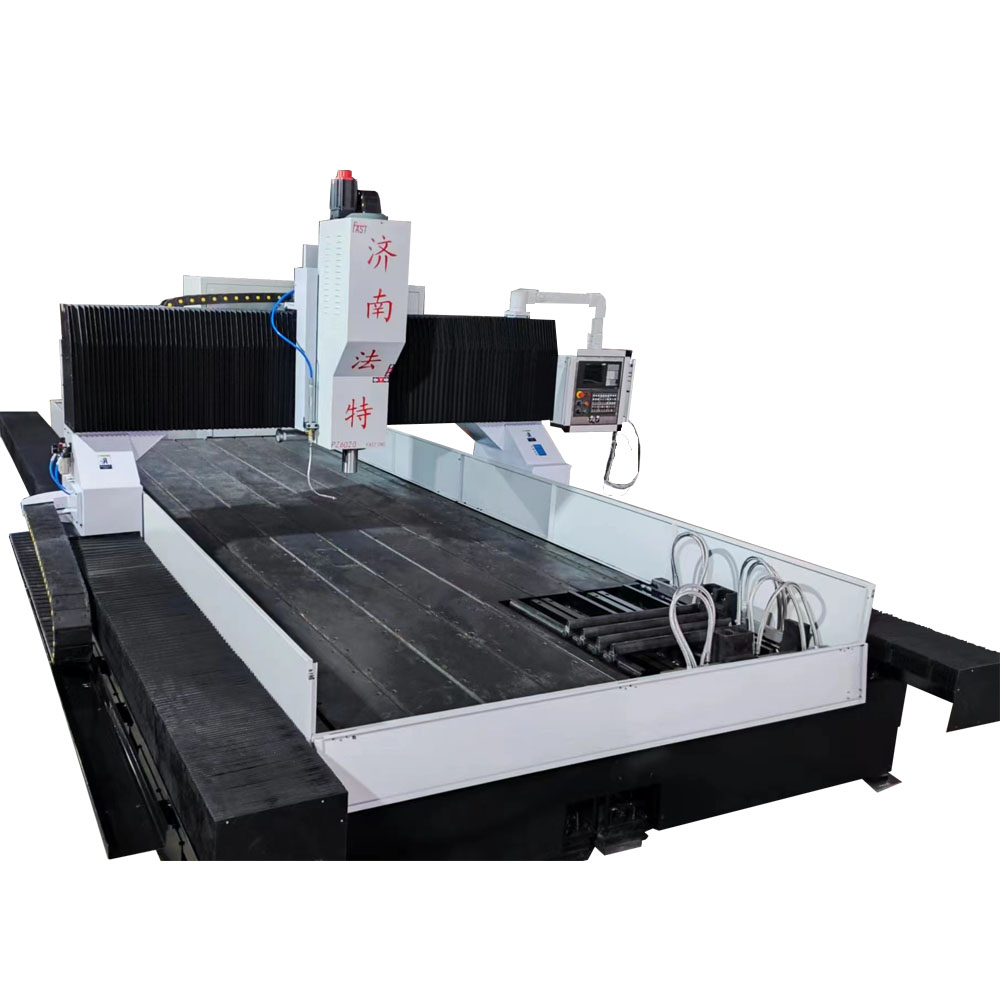

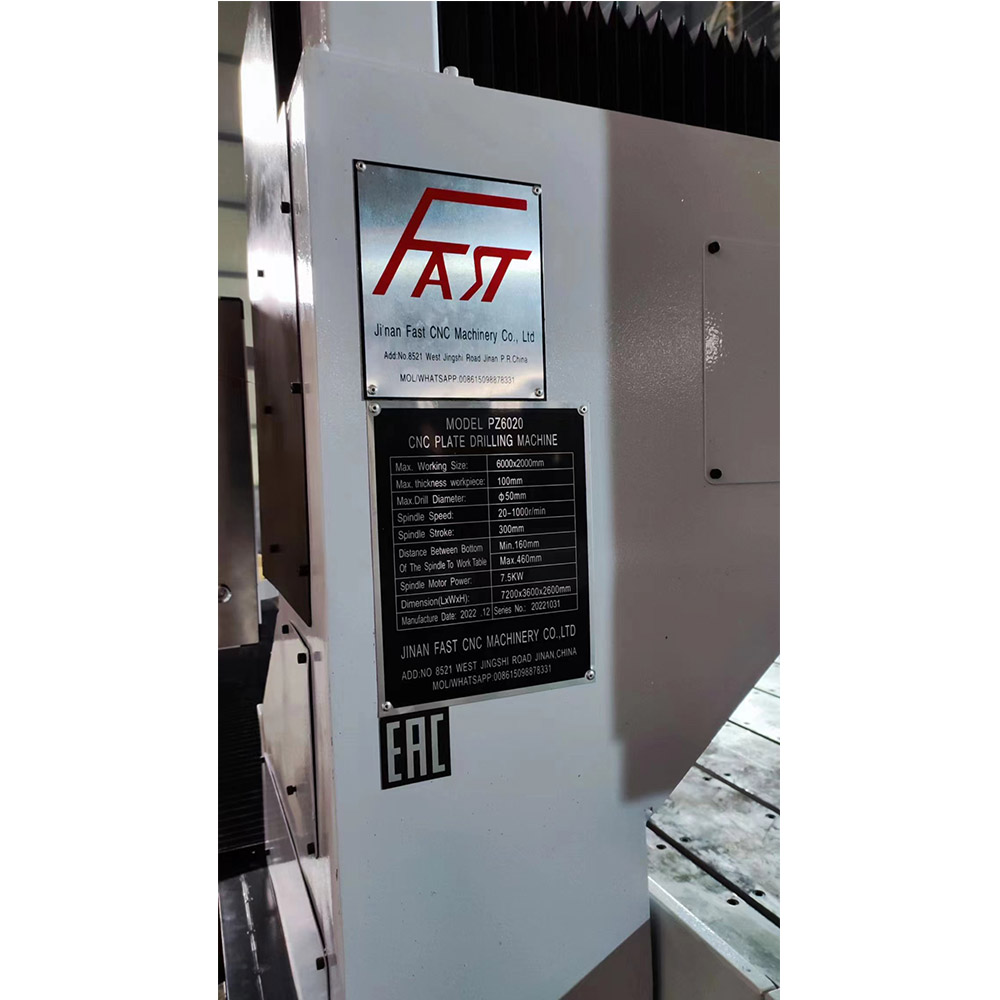

Heavy Duty PZ6020-50-1 CNC Drilling Machines Driller Gantry Machine Seperate Bed Structure
APPLICATION

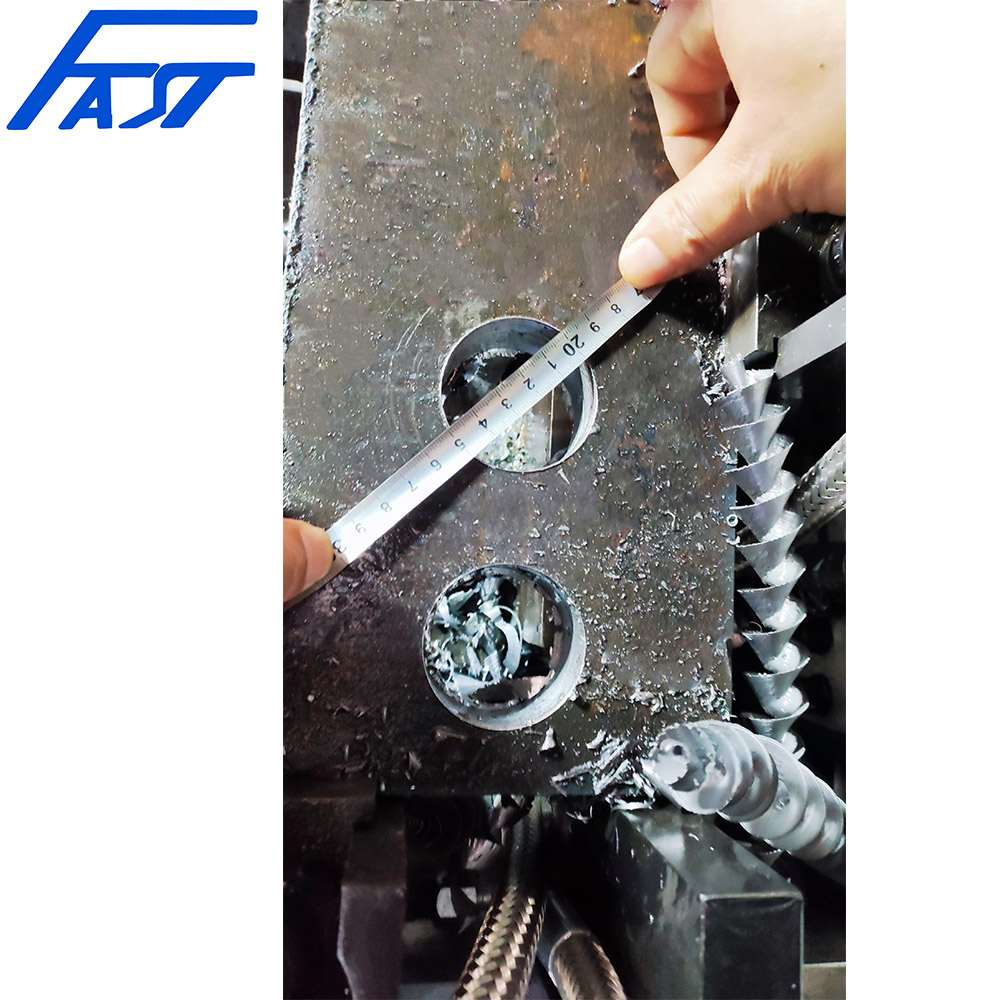

This machine is mainly used for drilling flanges, tube sheets, baffles and gear rings in petrochemical, boiler, wind power, engineering machinery.etc. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.
FEATURES
1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;
2. The movable gantry is installed on the left and right rail seats, with good dynamic and static rigidity. Worktable is stationary;

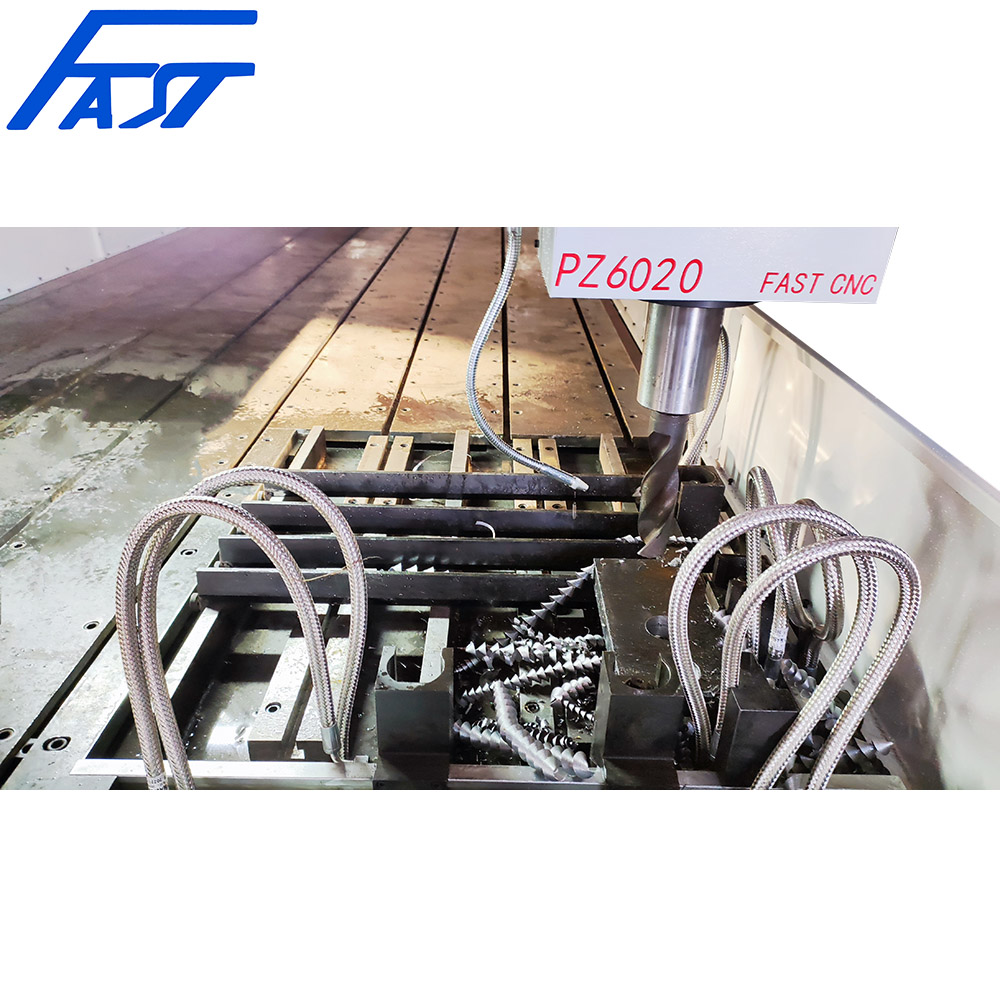

3. This machine adopts numerical control ram type drilling and milling power head, which has high drilling precision, high efficiency, convenient use and simple maintenance;
4. It has the functions of light milling, drilling, tapping and chamfering.

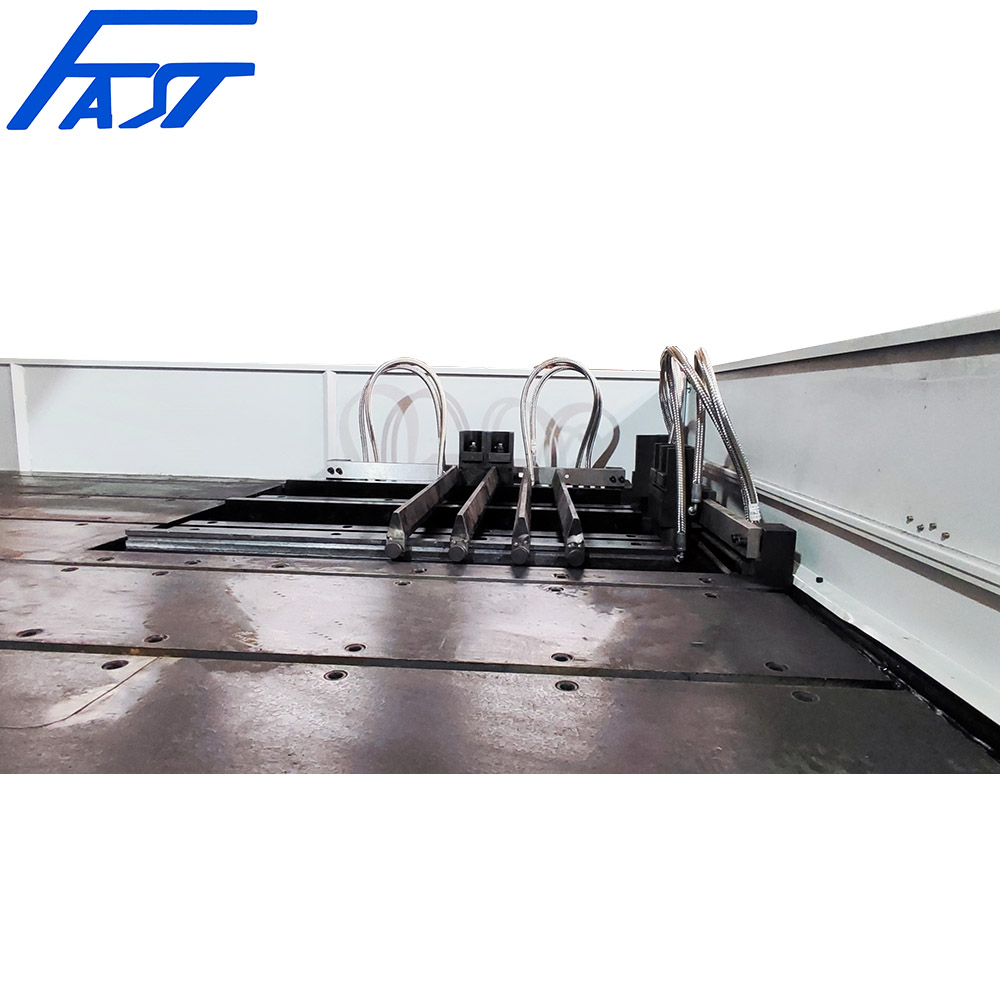

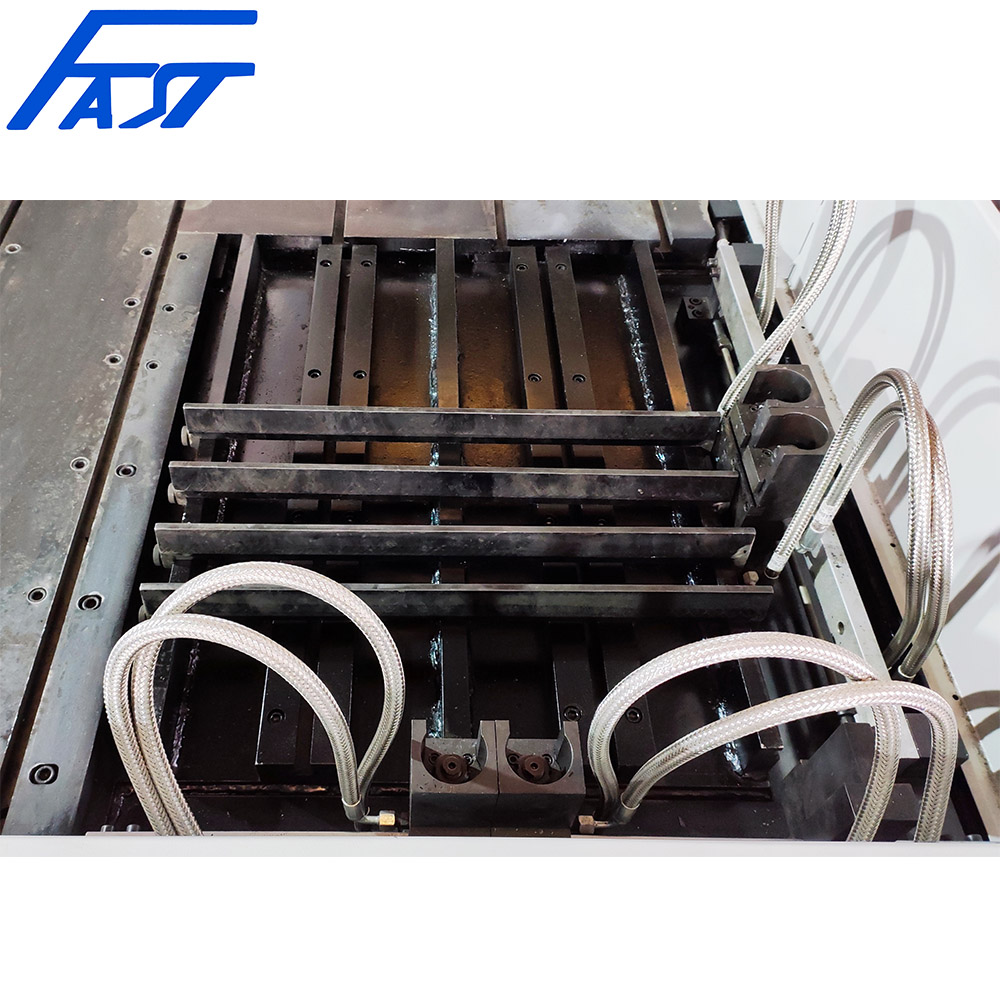

5. There are a number of T-shaped grooves on the workbench, which are used to clamp fixtures and workpieces.
6. Hydraulic clamping locks, not shaking when the power head and gantry drilling;
7. Equipped with a tool magazine, it is extremely convenient to load and unload tools.
8. Linear guide line and ball screw fully protected and not exposed;
9. Flat chain automatic chip conveyor & Circulating cooling device;
10. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;
11. Gantry beams & columns are widened and all steel plate welded, which is with good rigidity.
12. Full digital numerical control system control:
-Chip breaking function; Tool lifting chip removal function;
-Automatically converting CAD graphics into processing programs function;
- Adjusting the feed and speed according to different apertures,

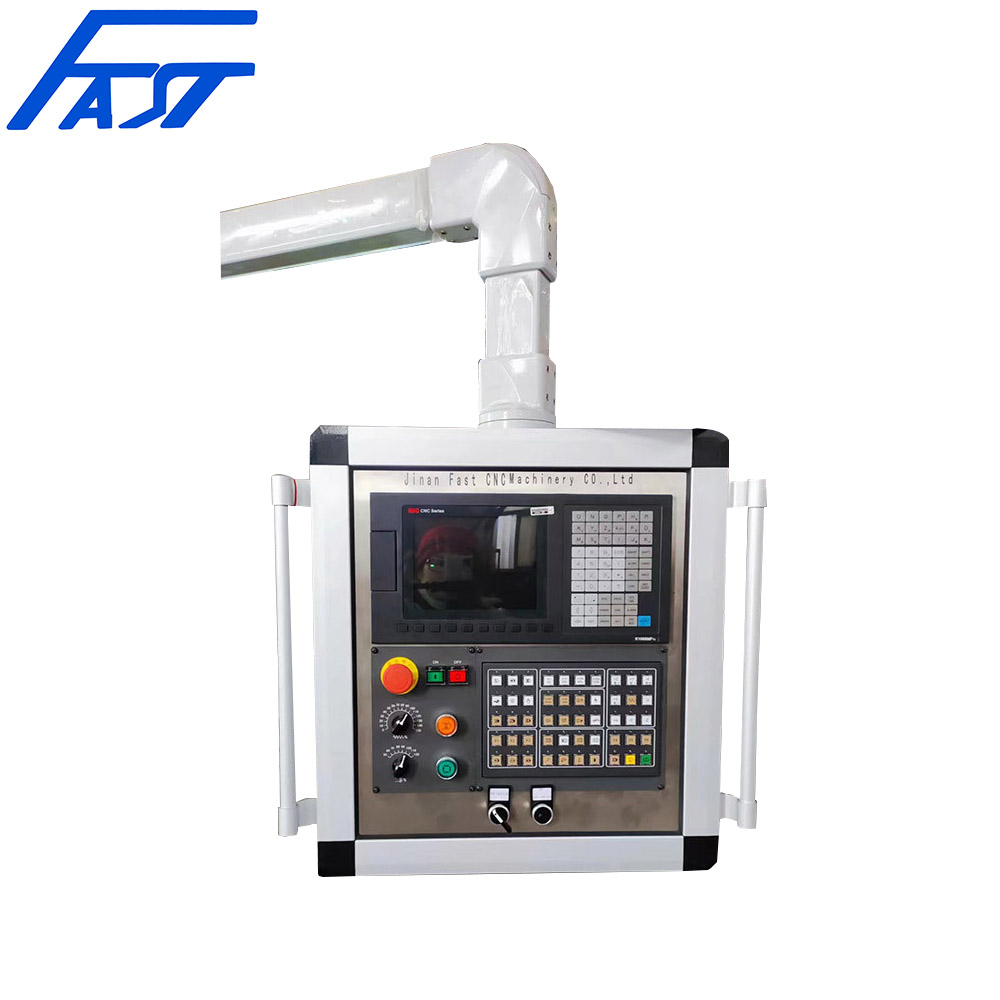

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.
-Hole position preview and re-inspection function.
COMPOSITION
Worktable Movable Gantry Drilling Power Head Automatic Chip Conveyor Circulating Cooling Device Automatic Lubrication Hydraulic System Pneumatic System Electrical System
TECHNICAL DATAName
Specification
Mode
Gantry type (X-axis guide screw on the top)
Table Size (L*W)
6100*2100mm
Working Size (L*W)
6000*2000mm
Distance between the bottom of the spindle to work table
160~460mm
Processing Capability
Max. Drilling Diameter
50mm(Q345)
Max. Workpiece Thickness
100mm
Drilling Power Head
Type of Power Head
CNC stroke drilling power head
Quantity
1
Spindle Technical Data
Spindle Power
7.5kW (with reducer)
Spindle Rotating Speed
20~1000r/min
Type of Connection mold of spindle
Morse 4#
Spindle Max. output torque
350Nm
Spindle rated torque
280Nm
Longitudinal movement X Axis
Max. Stroke
6000mm
Speed of X axis
0~6000mm/min
Servo motor power of X axis
2*1.5kW (with precision reducer)
Transverse movement of Y Axis
Max Stroke
2000mm
Speed of Y axis
0~6000mm/min
Servo motor power of Y axis
1.5kW (with precision reducer)
Vertical Stroke of Z Axis
Max. Stroke
300mm
Feeding Speed of Z axis
0~4000mm./min
Servo motor power of Z axis
1.5kW (with precision reducer)
CNC Axes
4Axes
Machine Accuracy
Positioning Accuracy
<0.06mm (Within 1000 mm)
Re-positioning Accuracy
≤0.04mm (Within 1000 mm)
Verticality of Spindle to work table
≤0.02mm (Any within 100 mm)
Run out of the bottom of spindle and the side spindle
≤0.05 mm (All stroke
within 300mm)
Lubrication system pressure
1.0MPa
Cooling system & filter system
Cooling System Max. Pressure
0.2MPa
Outline dimension(L*W*H)
7200*3600*2600 mm
Total Power
Appx.20kW
Net Weight
Approx. 15T
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
